PRODUCTS DETAIL
4K 영상 출력과 USB, LAN, AV까지 올인원 구성으로

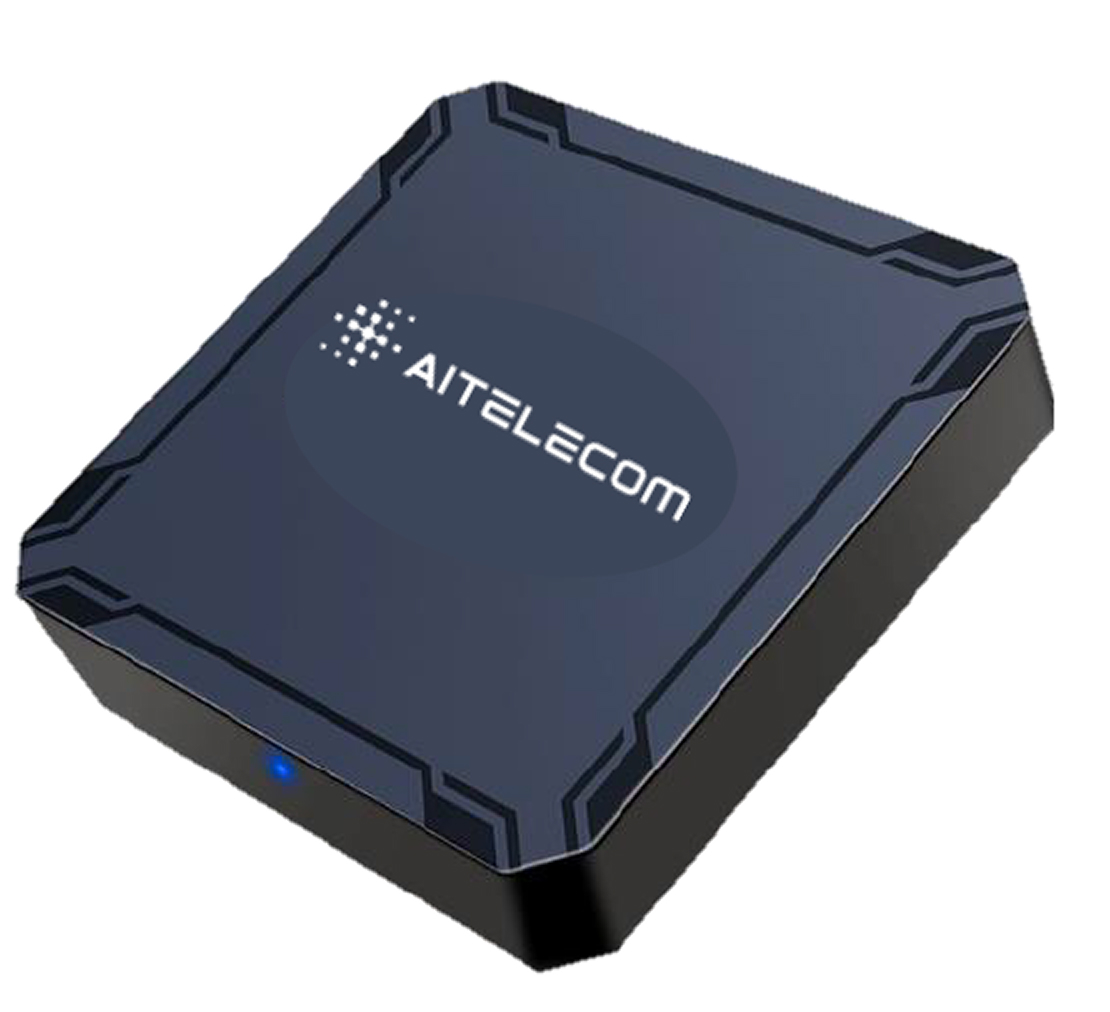

미디어 허브/안드로이드 미니PC의 새로운 기준 AIT-AP1
AIT-AP1
-
CPU
Quad core ARM
Cortex-A35@
up to 1.8GHz(12nm) -
GPU
Arm Mali-G31 MP2
(up to 800MHz) -
Memory
RAM DDR3 2GB /
Flash eMMC 8GB -
OS
Android 11
제품 사양
- 기본 사양
- CPU Quad core ARM Cortex-A35@ up to 1.8GHz(12nm)
- GPU Arm Mali-G31 MP2 GPU(up to 800MHz) OpenGL ES 3.2, vulkan 1.1 and OpencL 2.0 support.
- Memory RAM DDR3 2GB / Flash eMMC 8GB
- OS Android 11
- Size 87 X 87 X 17mm
- Case Material Plastic, Black Color
- Wi-Fi IEEE 802.11 b/g/n, 2.4G (Chip Antenna)
- I/O
- 1*HDMI 4K*2K UHD Output, HD 2.1
- 1*AV OUT 480i/576i standard definition output
- 2*USB 1* USB Host Port ,1*USB Device
- 1*IR Receiver Remote Receiver Connect
- 1*RJ45 Ethernet Interface (100M)
- 1*TF CARD Support 4GB/8GB/16GB/32GB/64GB/128GB
- 소프트웨어
- Video AV1 MP-10@L5.1 up to 4Kx2K@60fps / VP9 Profile-2 up to 4Kx2K@60fps AVS2-P2 Profile 4Kx2K@60fps / AVS-P16(AVS+) /AVS-P2 JiZhun Profile 1080P@60fps H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps / H.264 AVC HP@L5.1 4Kx2K@30fps MPEG-4 ASP@L5 1080P@60fps / MPEG-2 MP/HL 1080P@60fps /MPEG-1 MP/HL 1080P WMV/VC-1 SP/MP/AP up to 1080P@60fps
- Audio Supports MP3, AAC, WMA, RM, FLAC and programmable with 7.1/5.1 down-mixing Built-in stereo audio DAC / Built-in SPDIF/IEC958 and PCM serial digital audio I/O
- Image HD JPEG,BMP,GIF,PNG,TIF
- Language Korean
- 전원공급 및 외장
- Power DC 5V/2A Adaptor
- LED Indicator Blue : Working / Red : Standby
- Case Material / Size Plastic, Black Color / 87 * 87 * 17mm
- 인증
- KC (R-C-aIT-AIT-AP1 / 2023.Q3)
